What is Large Parts CNC Machining?
Large parts CNC machining refers to the computer-controlled manufacturing process of machining components that exceed the size or weight limits of conventional CNC machines. These parts often require specialized machinery capable of handling dimensions and weights that can span several feet or tons. The process includes milling, turning, boring, drilling, and multi-axis machining to achieve precise geometries and tight tolerances despite the challenges posed by the size and complexity.
Key Characteristics of Large Parts CNC Machining
Oversized Work Envelopes: Machines capable of handling parts measuring several feet in length, width, and height.
Heavy Load Capacity: Equipment designed to support and move heavy components safely.
Advanced Workholding: Custom fixtures and automated systems for secure and accurate part positioning.
Multi-axis Capability: 3, 4, or 5-axis CNC machining centers to handle complex geometries.
Precision and Repeatability: Maintaining tight tolerances over large working envelopes despite thermal and mechanical variations.
Challenges in Large Parts CNC Machining
Machining large components introduces several challenges that require innovative solutions:
1. Workpiece Loading and Workholding
Large parts often cannot be manually loaded or oriented with conventional tools. Automated systems and CNC controls that adjust part programs to match the part orientation simplify this process, reducing setup times and errors.
2. Maintaining Accuracy Across Large Envelopes
As the size of the workpiece increases, machine accuracy can degrade due to mechanical deflection, thermal expansion, and backlash. Advanced compensation technologies like thermal growth compensation, backlash compensation, and 3D volumetric compensation are essential to maintain precision throughout the machining process.
3. Measurement and Quality Control
Large parts require in-process measurement systems integrated with CNC controls to detect tool wear, part orientation, and dimensional accuracy. Utilizing 2D and 3D laser measurement systems and coordinate measuring machines (CMMs) ensures that parts meet specifications without costly rework.

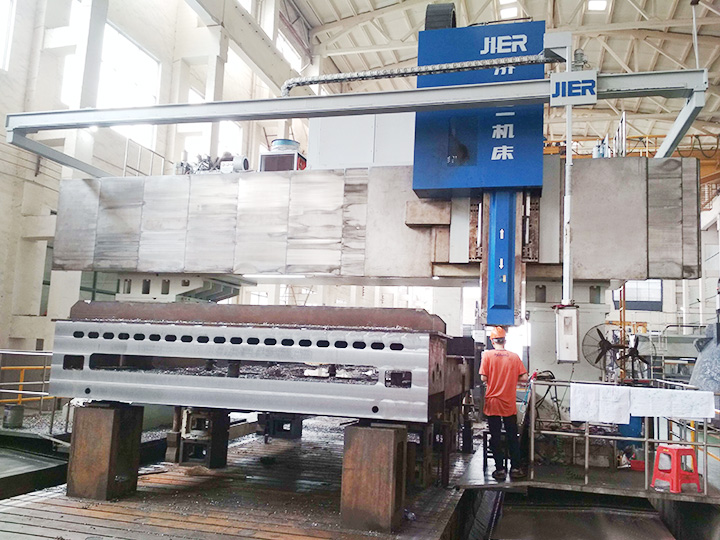

Jinan No.2 Machine Tool is a heavy-duty fixed beam CNC gantry machining center, specializing in large stroke, large load-bearing, high rigidity, and high precision. It is suitable for large heavy-duty structural components in energy, engineering machinery, ships, rail transit, and other fields. One clamping can complete multiple processes such as boring, milling, drilling, and tapping. It is the core equipment for batch and customized processing of large boxes, wind turbine flanges, pressure vessel end caps, heavy-duty frames, and other workpieces.
High rigidity and stability: The bed/column is made of HT300 integral casting, with dual aging treatment to eliminate stress, resistance to impact and deformation, and strong adaptability
Efficient composite processing: integrating multiple processes in one clamping to reduce clamping errors and improve the efficiency of processing large workpieces.
Customized adaptation: can customize extended travel, add milling head accessories/tool magazine to meet the needs of different heavy-duty machining scenarios
Mature and reliable: Made with precision craftsmanship from the original factory, the process is mature, and we provide comprehensive quality assurance and lifelong technical support.
Processing of large, heavy, and high-precision metal structural components such as wind/nuclear power energy equipment, engineering machinery heavy-duty bases/turntables, ship engine racks, rail transit vehicle body fixtures, and large pressure vessels.
