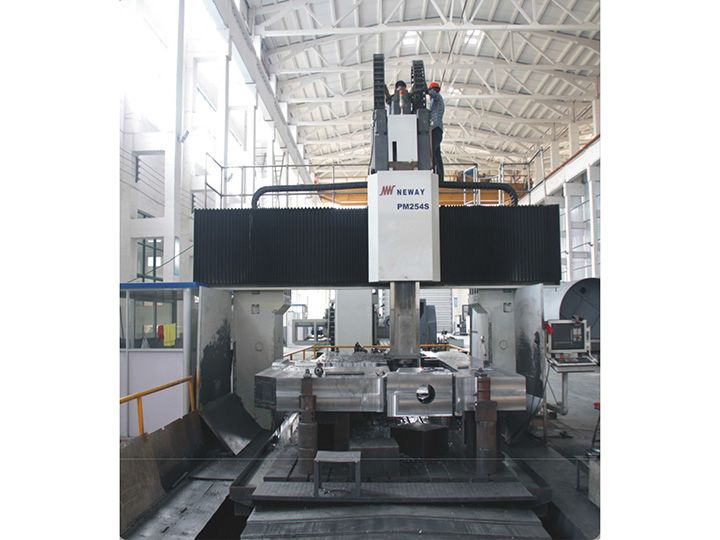

A CNC gantry milling machine is a large-scale automated processing equipment belonging to the category of heavy-duty CNC machine tools. Different from ordinary vertical milling machines, it adopts a fixed gantry frame and movable worktable structure, specially designed for processing large-size, heavy-weight metal workpieces. Equipped with high-precision servo drive systems and intelligent numerical control systems, this machine realizes automatic milling, drilling, boring and tapping processes. Featuring large processing stroke, strong bearing capacity and excellent structural stability, CNC gantry milling machines are essential core equipment in heavy machinery manufacturing and mold processing industries.





The CNC gantry milling machine consists of several key mechanical and electronic modules. The integral gantry frame is cast from high-strength gray iron or ductile iron, which effectively reduces structural deformation and vibration during heavy cutting. The movable worktable has a large bearing area and is equipped with precision linear guide rails to ensure smooth horizontal displacement. The vertical spindle head is fitted with high-power spindle motors and high-hardness cutting tools to provide stable cutting torque. In addition, it is equipped with an independent lubrication system, cooling circulation device, dust removal mechanism and human-computer intelligent control panel to meet long-term continuous industrial processing requirements.





The processing operation is controlled by a professional CNC numerical control system. Technicians import optimized processing programming codes into the controller after completing workpiece modeling and parameter setting. The system transmits electronic signals to servo motors to drive the worktable and spindle for three-axis or multi-axis linkage movement. The high-speed rotating tool removes excess materials from the surface of the workpiece to complete precision forming. During the machining process, real-time detection sensors monitor spindle vibration, cutting temperature and position deviation. The system automatically compensates for errors to ensure high flatness and dimensional accuracy of large workpieces.





Compared with conventional CNC milling equipment, gantry milling machines have prominent processing advantages. Firstly, the rigid gantry structure greatly improves vibration resistance, enabling stable heavy-duty cutting without tool chattering. Secondly, the ultra-large processing stroke adapts to oversized workpieces that cannot be processed by ordinary machine tools. Thirdly, the integrated casting body minimizes thermal deformation, ensuring long-term processing precision. Moreover, it supports one-time clamping and multi-surface processing, simplifies production procedures, and reduces repeated positioning errors. It is compatible with carbon steel, alloy steel, stainless steel and other hard metal materials.





CNC gantry milling machines are widely used in heavy industrial manufacturing fields. In mold industry, they process large injection molds, die-casting molds and mechanical mold bases. In engineering machinery manufacturing, the equipment machines thick steel plates, structural brackets and large cylinder accessories. In aerospace and energy industries, it produces high-precision large-scale structural parts. Furthermore, it is commonly applied in shipbuilding, rail transit and pressure vessel manufacturing, providing reliable processing solutions for oversized and heavy industrial components.





With the rapid development of heavy intelligent manufacturing, CNC gantry milling machines are continuously upgraded toward high rigidity, high efficiency and multi-function integration. Modern models are equipped with automatic tool changers, closed-loop servo systems and intelligent fault diagnosis functions. Ultra-precision grinding technology and composite coating further extend the service life of mechanical components. In conclusion, the CNC gantry milling machine is an indispensable heavy-duty processing device. Its superior rigidity, large processing range and stable precision make it a key piece of equipment to support the production of heavy industrial machinery.
